Descrição

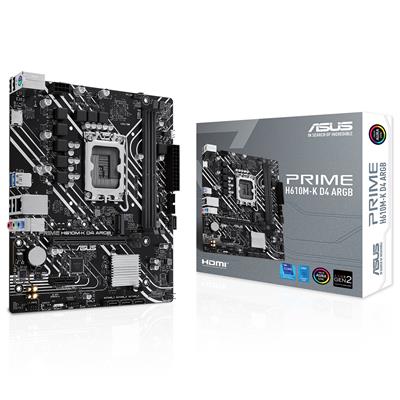

Las placas base de la serie ASUS Prime est&aacute,n dise&ntilde,adas por expertos para liberar todo el potencial de los procesadores Intel&reg, de 14.&ordf, , 13.&ordf, y 12.&ordf, generaci&oacute,n . Con un dise&ntilde,o de energ&iacute,a robusto, soluciones integrales de enfriamiento y opciones de ajuste inteligentes, Prime H610 ofrece a los usuarios y constructores de PC una gama de opciones de ajuste del rendimiento a trav&eacute,s de funciones intuitivas de software y firmware.

<>

Especificaciones

<>

<>
• Procesador<>
  <>
  • Intel Socket LGA1700 for Intel Core 14th &amp, 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

  <>

  • Chipset Intel H610

  <>

  • Memoria 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

  <>

  • Dual channel memory architecture

  <>

  • Supports Intel&reg, Extreme Memory Profile (XMP) memory module

  <>

  <>

<>

• Slots<>
  <>
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)

  <>

  • 1 x PCIe 3.0 x1 slot

  <>

  <>

<>

• Gr&aacute,ficos 1 x HDMI port

<>

• Almacenamiento<>
  <>
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

  <>

  • 4 x SATA 6Gb/s ports

  <>

  <>

<>

• USB<>
  <>
  • 2 x USB 5Gbps ports (2 x Type-A)

  <>

  • 4 x USB 2.0 ports (4 x Type-A)

  <>

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  <>

  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

  <>

  <>

<>

• Audio<>
  <>
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*

  <>

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  <>

  • Supports up to 24-Bit/192 kHz playback

  <>

  • Audio Shielding

  <>

  • Premium audio capacitors

  <>

  • Dedicated audio PCB layers

  <>

  <>

<>

• Conectividad y redes 1 x Realtek 1Gb Ethernet

<>

• Conectores Internos<>
  <>
  • 1 x 4-pin CPU Fan header

  <>

  • 1 x 4-pin Chassis Fan header

  <>

  • 1 x 24-pin Main Power connector

  <>

  • 1 x 8-pin +12V Power connector

  <>

  • 1 x M.2 slot (Key M)

  <>

  • 4 x SATA 6Gb/s ports

  <>

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  <>

  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

  <>

  • 2 x Addressable Gen 2 headers

  <>

  • 1 x Clear CMOS header

  <>

  • 1 x COM Port header

  <>

  • 1 x Front Panel Audio header (F_AUDIO)

  <>

  • 1 x S/PDIF Out header

  <>

  • 1 x Speaker header

  <>

  • 1 x SPI TPM header (14-1 pin)

  <>

  • 1 x 10-1 pin System Panel header

  <>

  <>

<>

• Conectores Traseros<>
  <>
  • 2 x USB 5Gbps ports (2 x Type-A)

  <>

  • 4 x USB 2.0 ports (4 x Type-A)

  <>

  • 1 x HDMI&trade, port

  <>

  • 1 x Realtek 1Gb Ethernet port

  <>

  • 3 x Audio jacks

  <>

  • 1 x PS/2 keyboard/mouse combo port

  <>

  <>

<>

• Factor de forma micro-ATX (23.4 cm x 20.3 cm)

<>
